SPL Bumpsteer Adjustable Tie Rod Ends Toyota Supra GR A90 GR/BMW G2X/BMW G42/BMW G8X

SPL Bumpsteer Adjustable Tie Rod Ends Toyota Supra GR A90 GR/BMW G2X/BMW G42/BMW G8X

SKU:SPL TRE G29

Regular price $399.00 USD
Regular price Sale price $399.00 USD
Sale Sold out

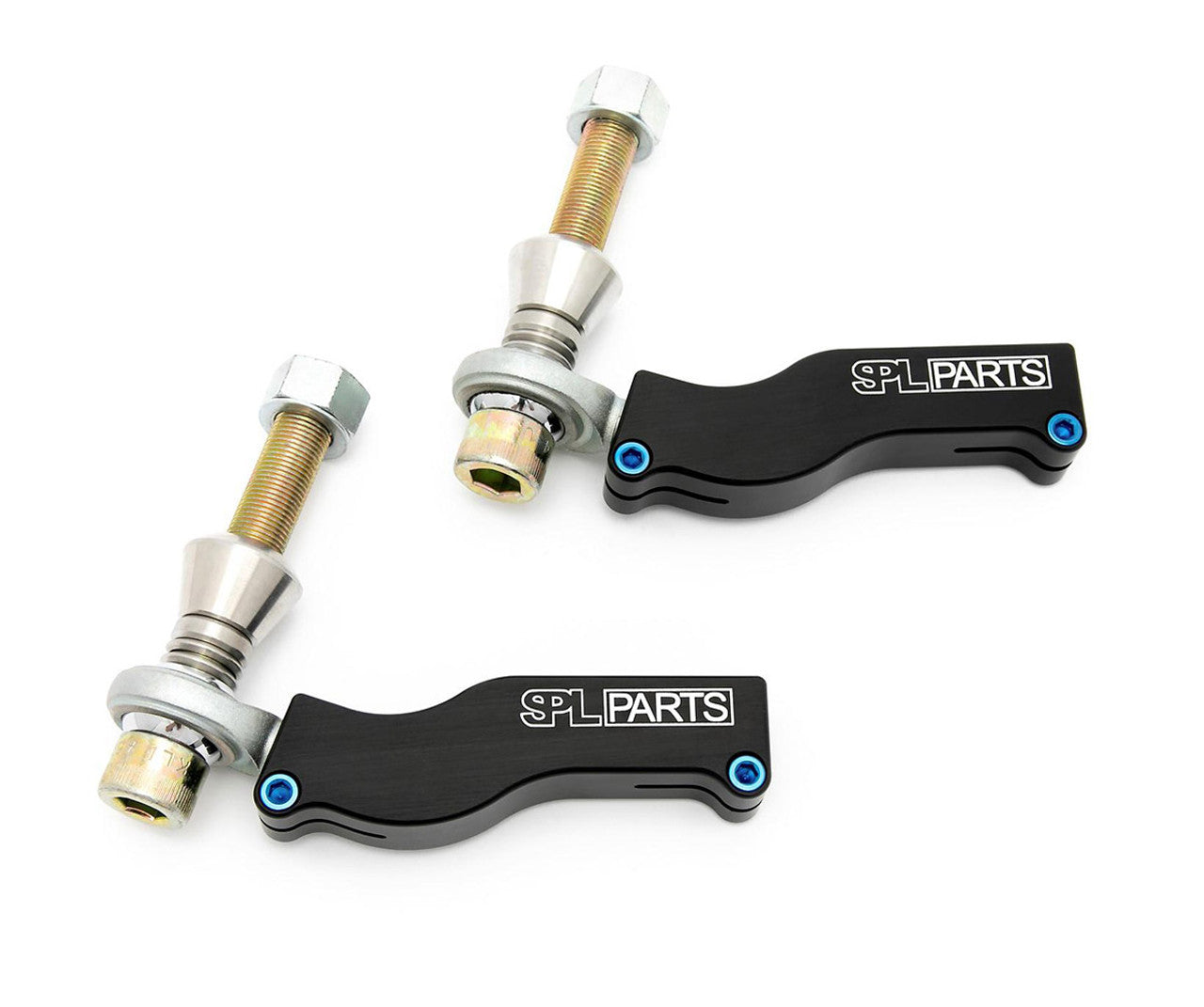

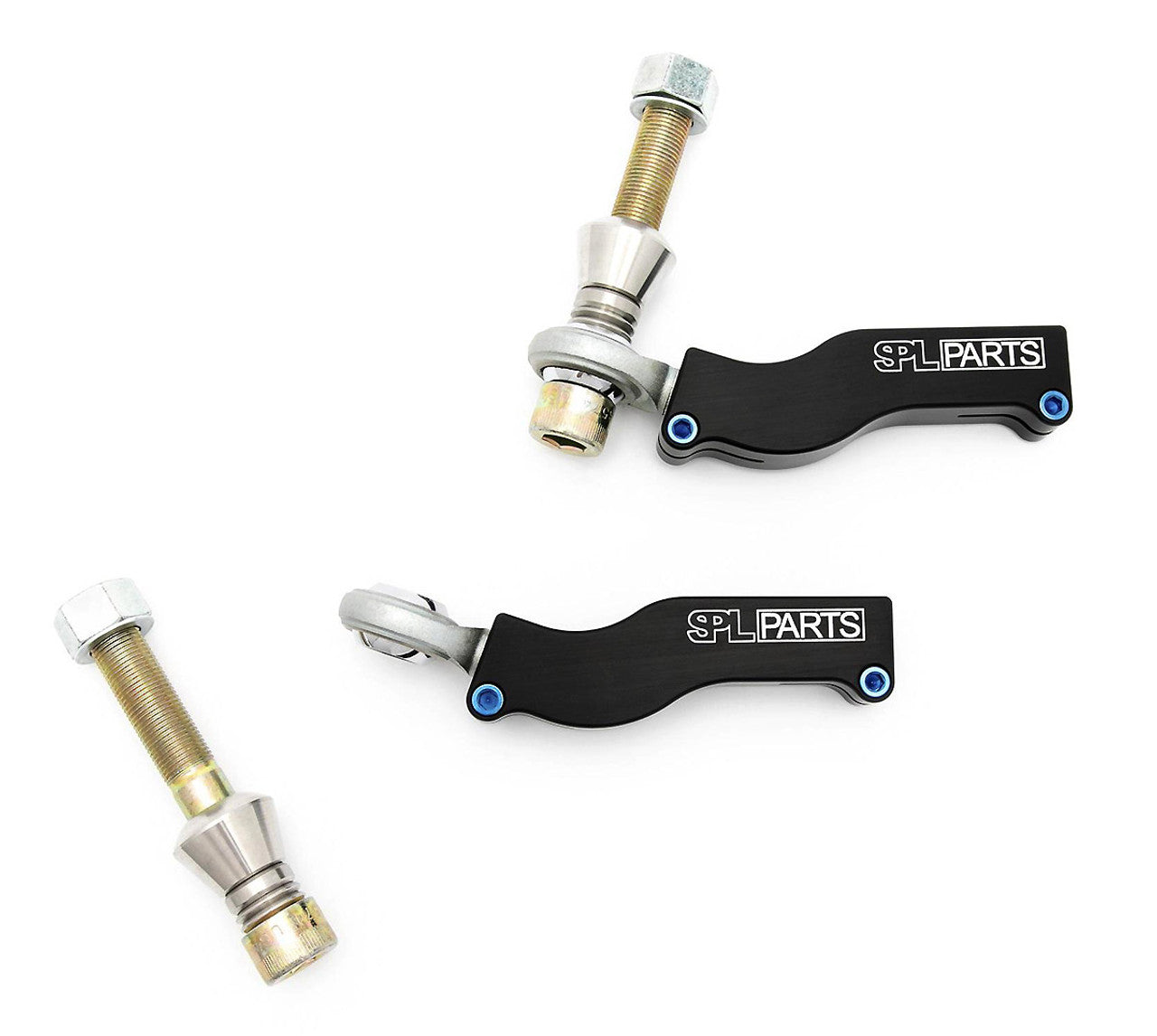

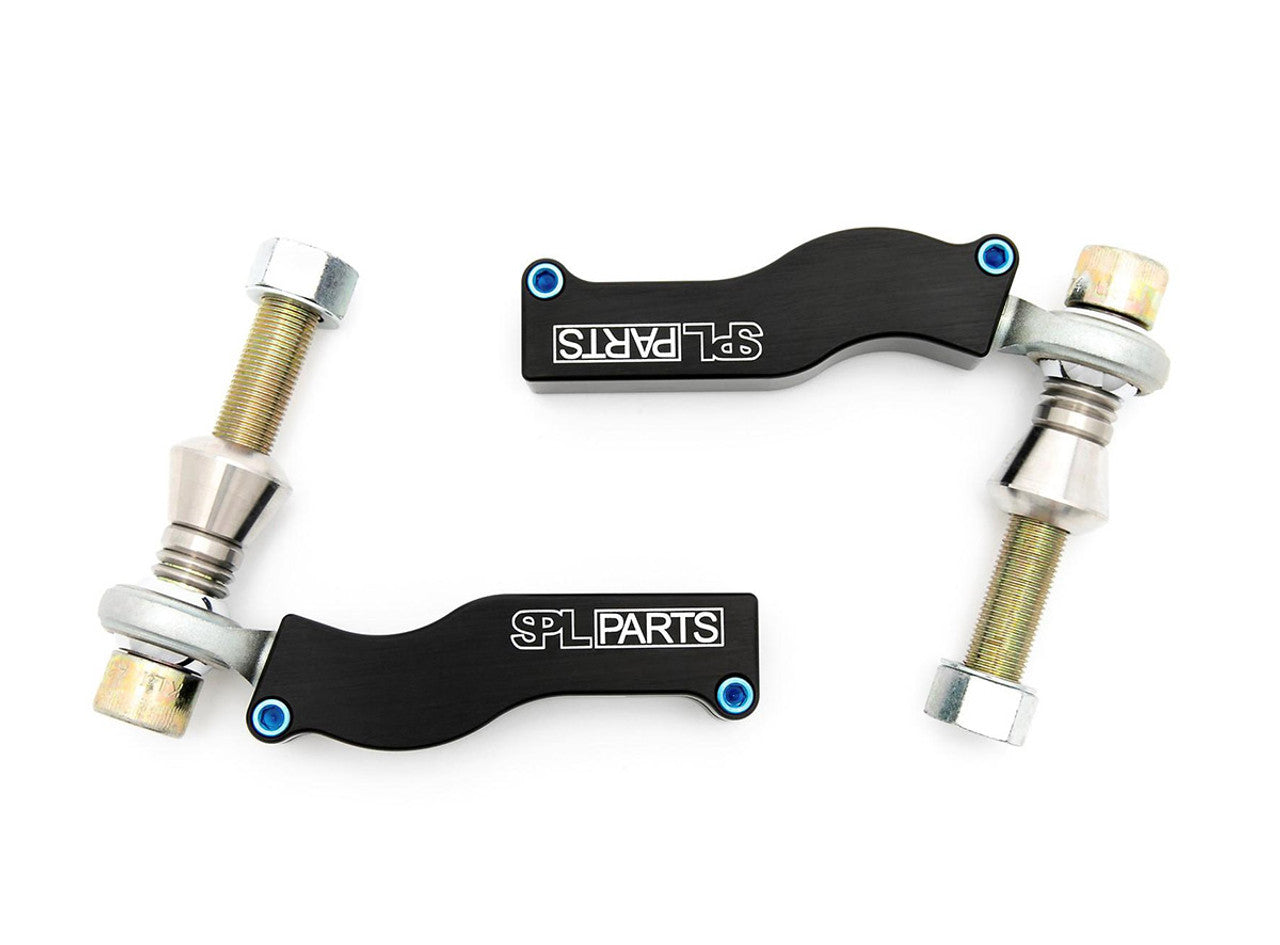

SPL Parts Front Tie Rod Ends (TRE) allow the tie rod end pivot to be relocated, which will correct bump steer resulting from modified caster or lower arm geometry, thus reducing lap times.  On cars that are lowered significantly, relocating the pivot point will also keep the tie rod end from binding, thereby preventing the inner tie rods from breaking or bending when racing.

Sold as a pair.

Made in the USA!


SPL Parts Adjustable Tie Rod Ends Feature:
•    ASTM A574 socket head cap bolts used for maximum articulation with minimum tensile strength of 170,000 psi
•    Custom CNC machined 6061-T6 Billet Aluminum curved turnbuckles to maximize articulation and allow full droop travel
•    Low friction Teflon lined FK Heim joints/rod ends
•    1/4" and 1/8" thick Stainless Steel bump steer spacers for precise adjustment, with tapered ends to provide more misalignment
•    Blue Anodized Titanium socket head cap screws for lightweight and robust clamp force

Applications:

2020+ Toyota Supra A90 GR

2019+ BMW Z4 G29

2022+ G80/G82 M3/M4

2018+ G20, G21, G22, G23, G24 (ONLY CHASSIS WITH INLINE 6 ENGINE OR AWD)

2021+ G42 (ONLY CHASSIS WITH INLINE 6 ENGINE OR AWD)
