Please allow 3–4 months for GT Wing orders — carbon and aluminum components are kept in stock, but vehicle-specific stands and base mounts are built to order. Current ETA can be upwards of 3–4 months if items are not in stock. Please confirm timeline availability before ordering. We cannot provide refunds once parts are ordered.

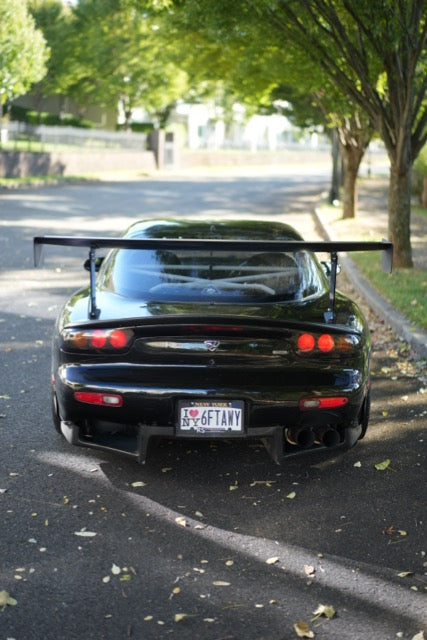

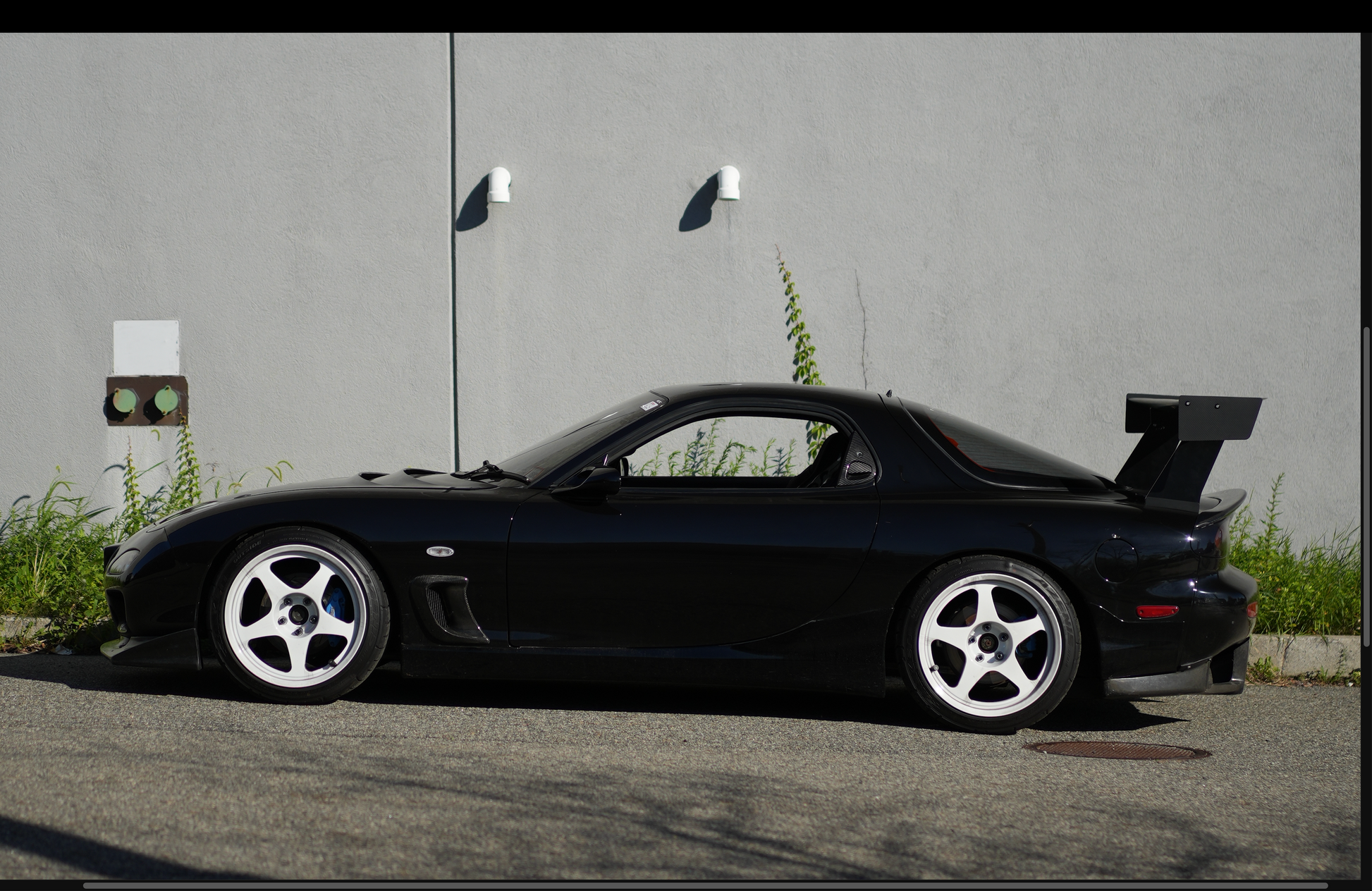

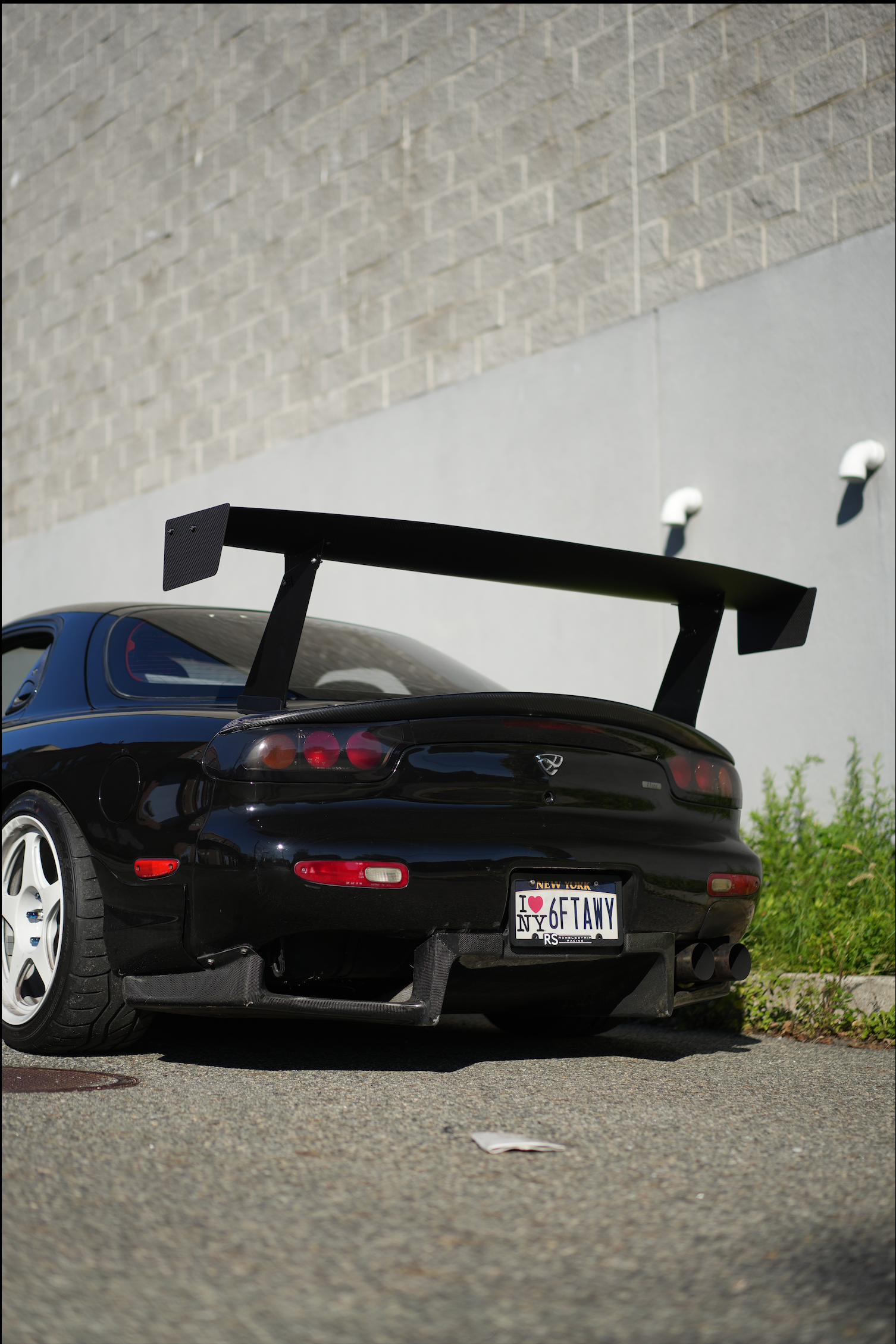

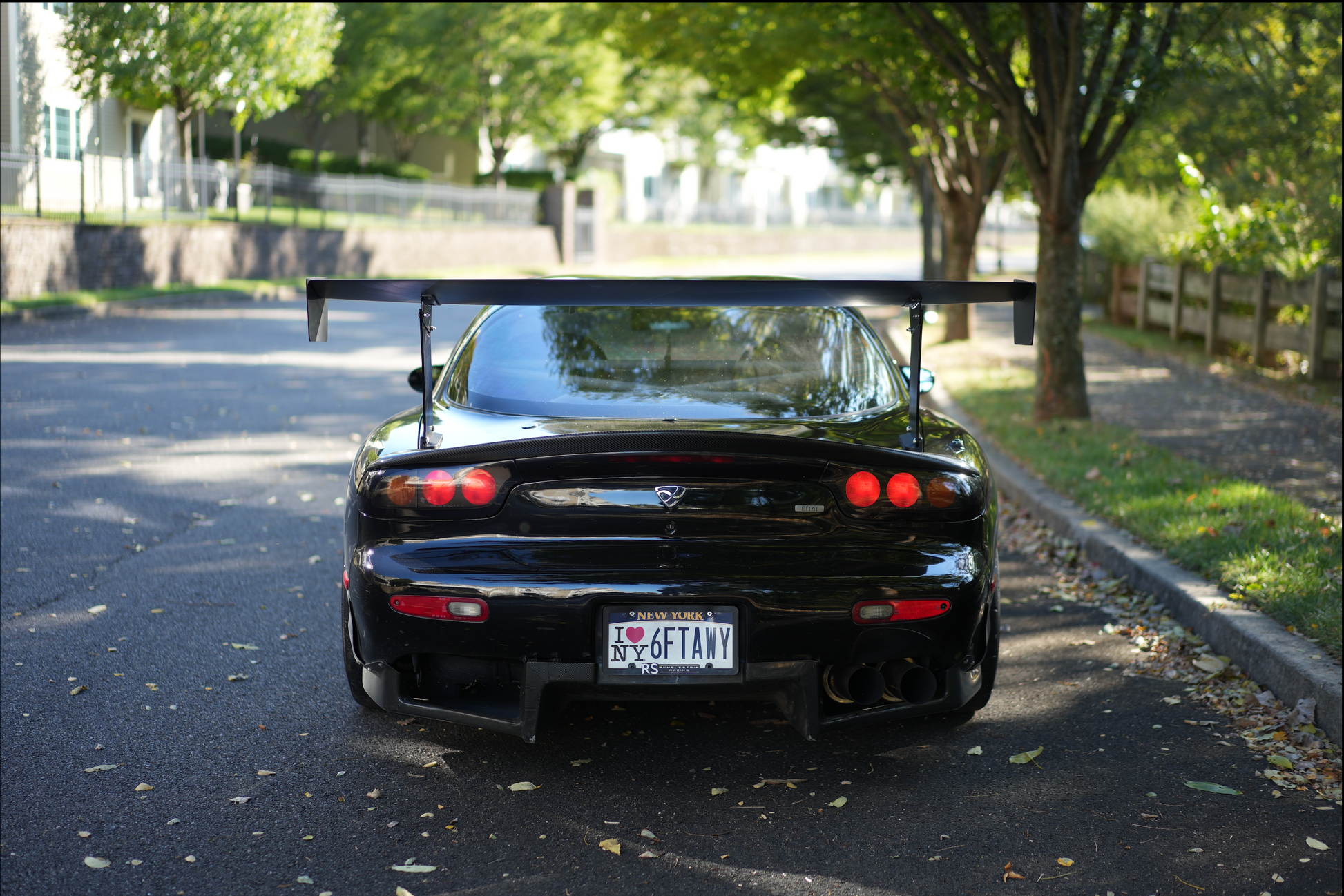

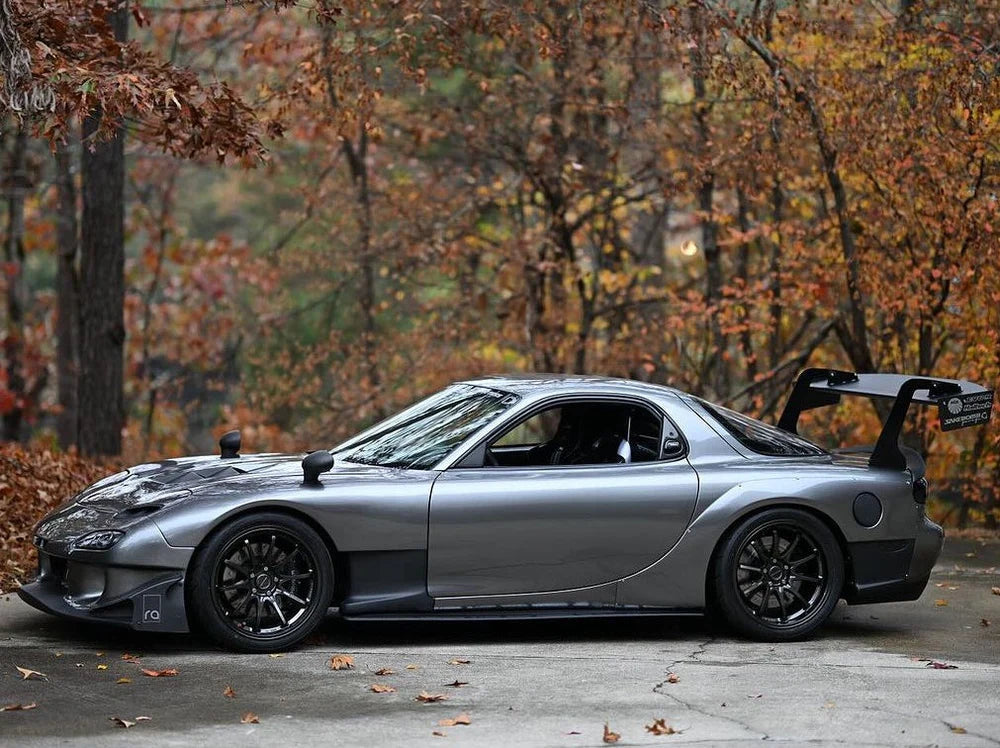

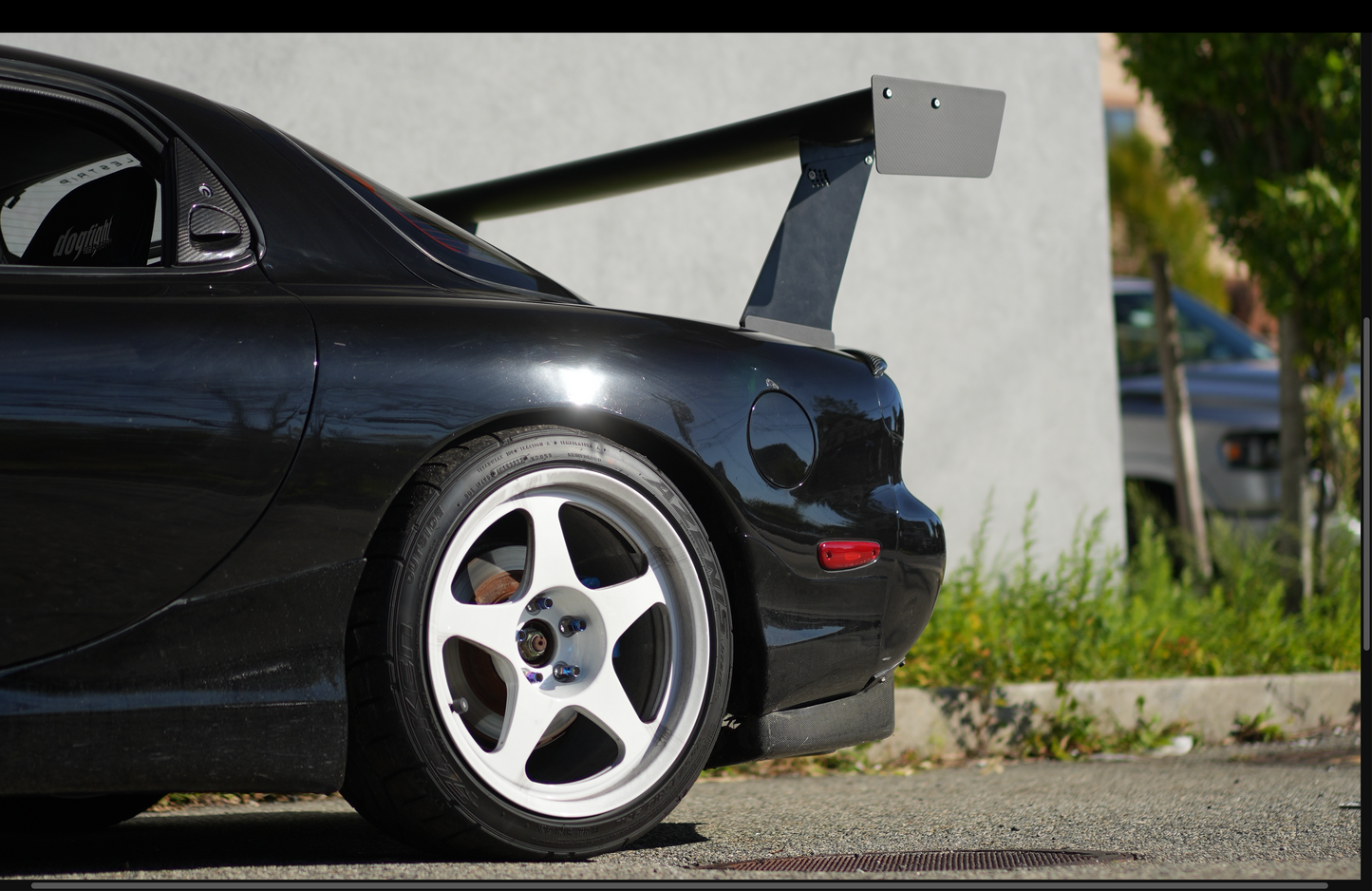

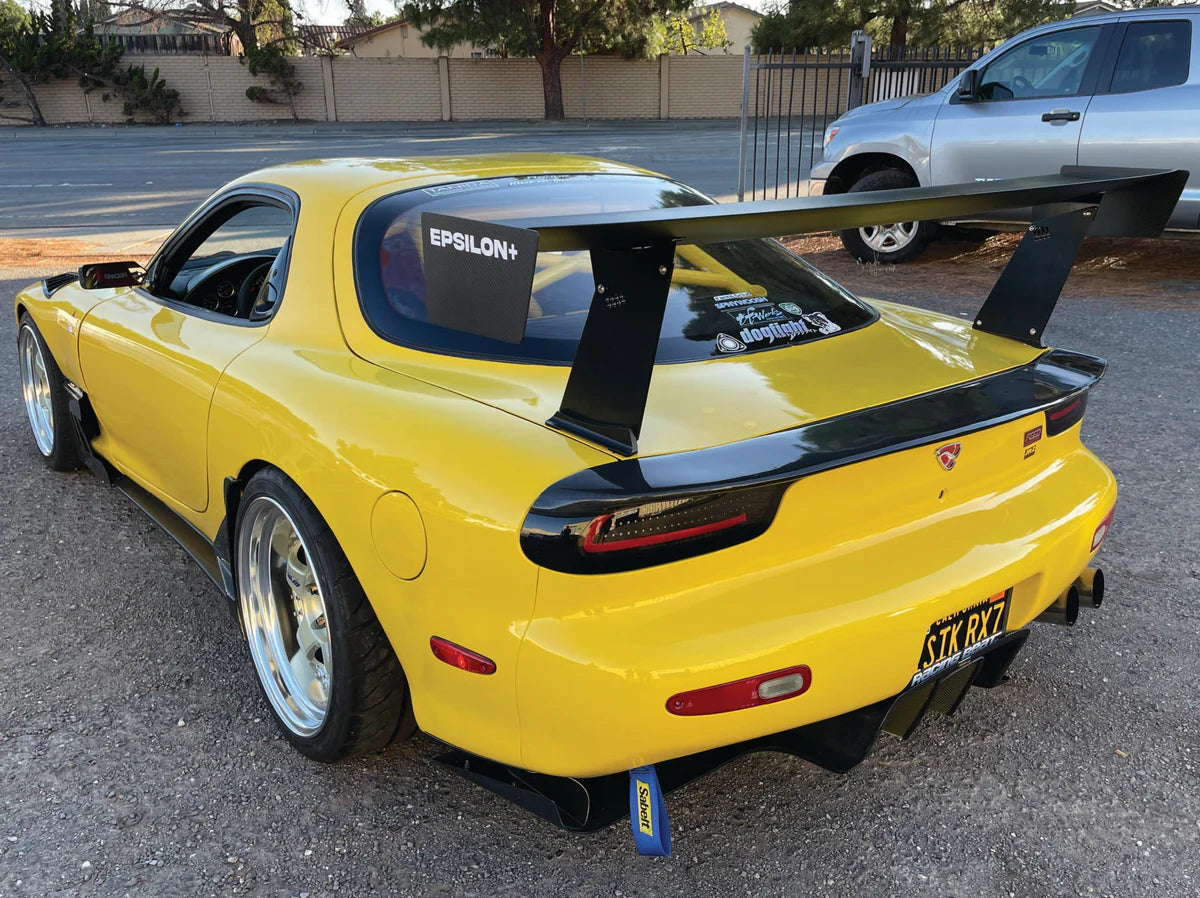

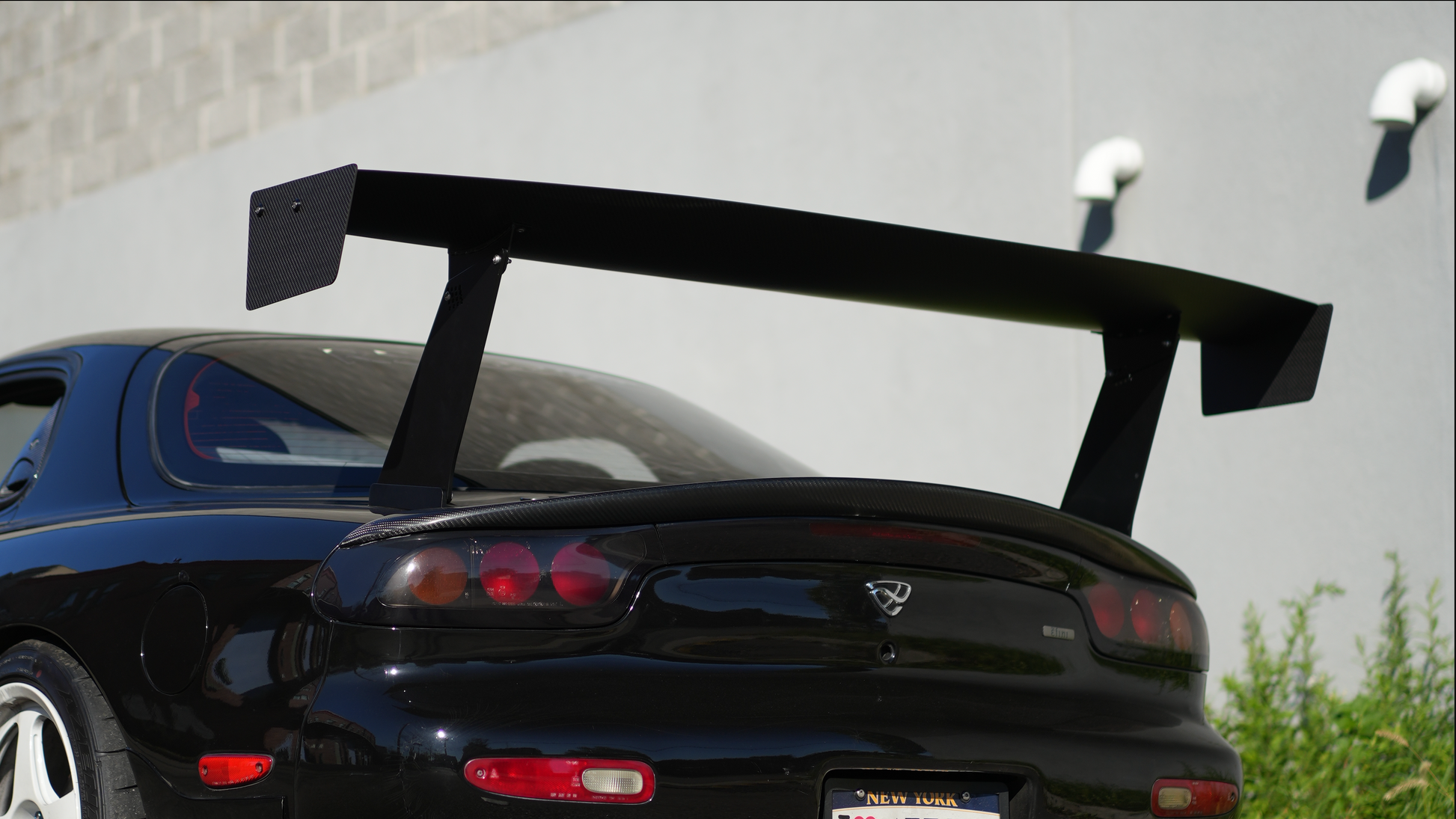

Our flagship product — the carbon fiber GT Wing for the Mazda RX-7 (FD3S). This wing uses the factory '93 outer trunk holes. A template can be provided for wingless customers.
Dimensions: Width 1675mm, Chord Length 360mm
Race proven: Not just a competitor but a winner. We have set multiple Time Attack lap records with our wing element.

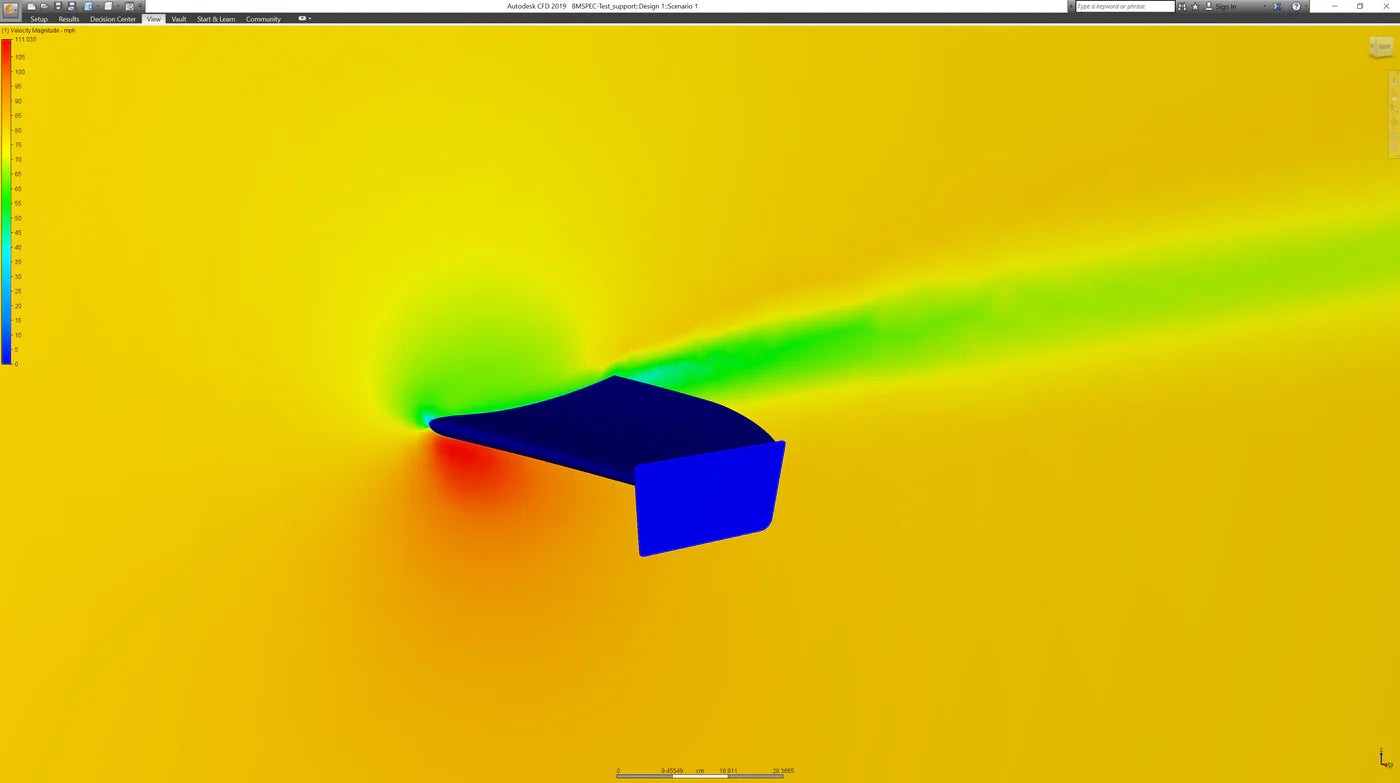

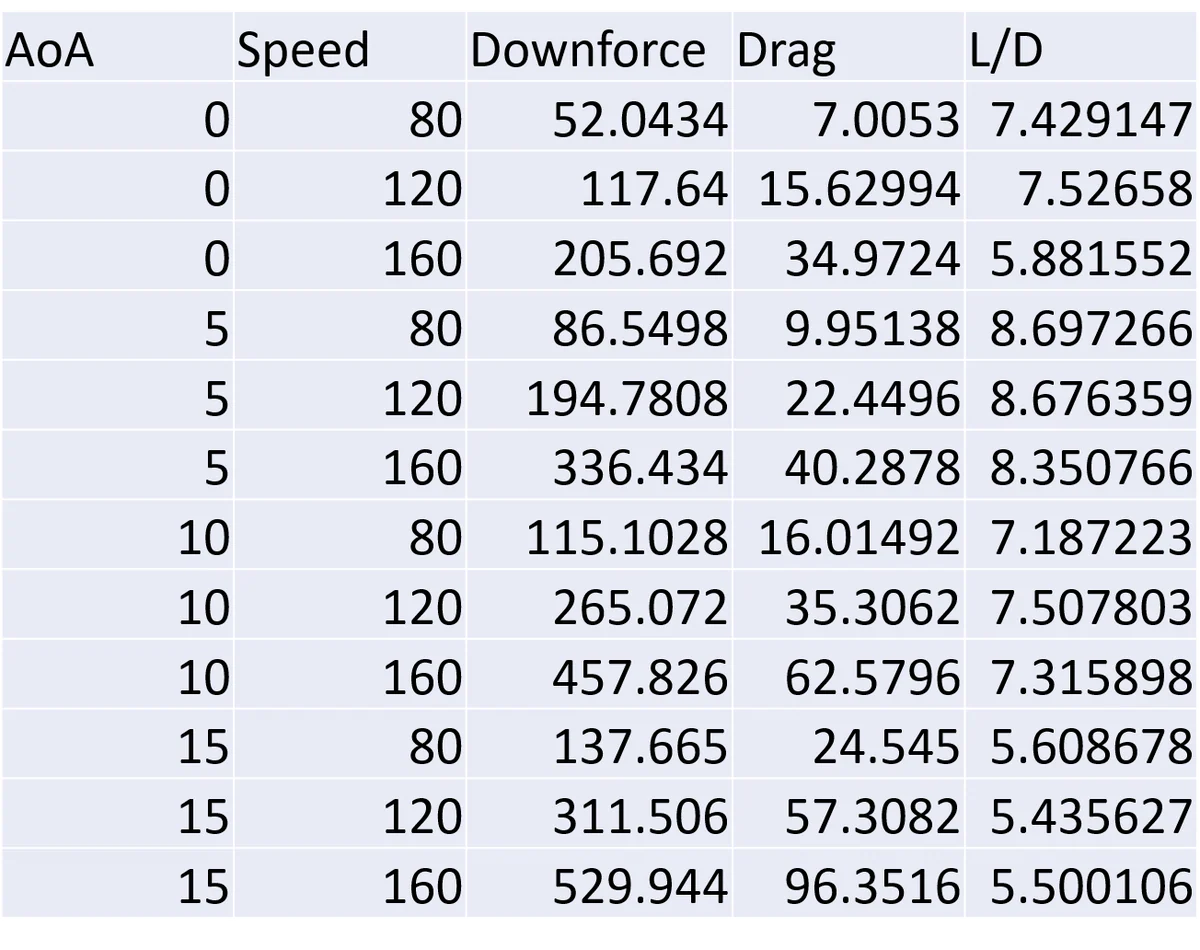

2D/3D hybrid profile: Developed in CAD, optimized in CFD. Our super-efficient wing profile can produce 500+ lbs of downforce at 160mph with minimal drag. See CFD data in pictures.
Light & stiff construction: 100% carbon fiber pre-preg layup around a composite accordion core — 6.5 lbs without sacrificing strength.

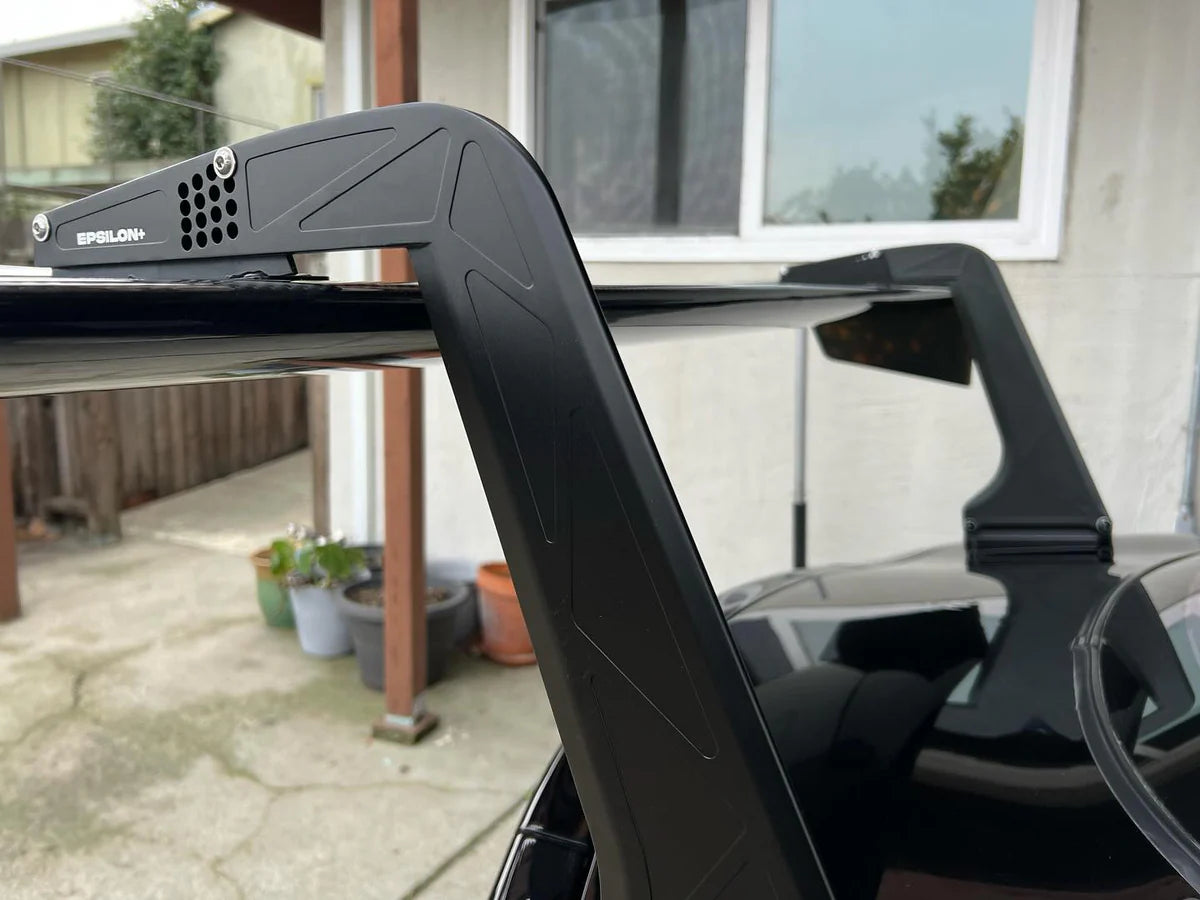

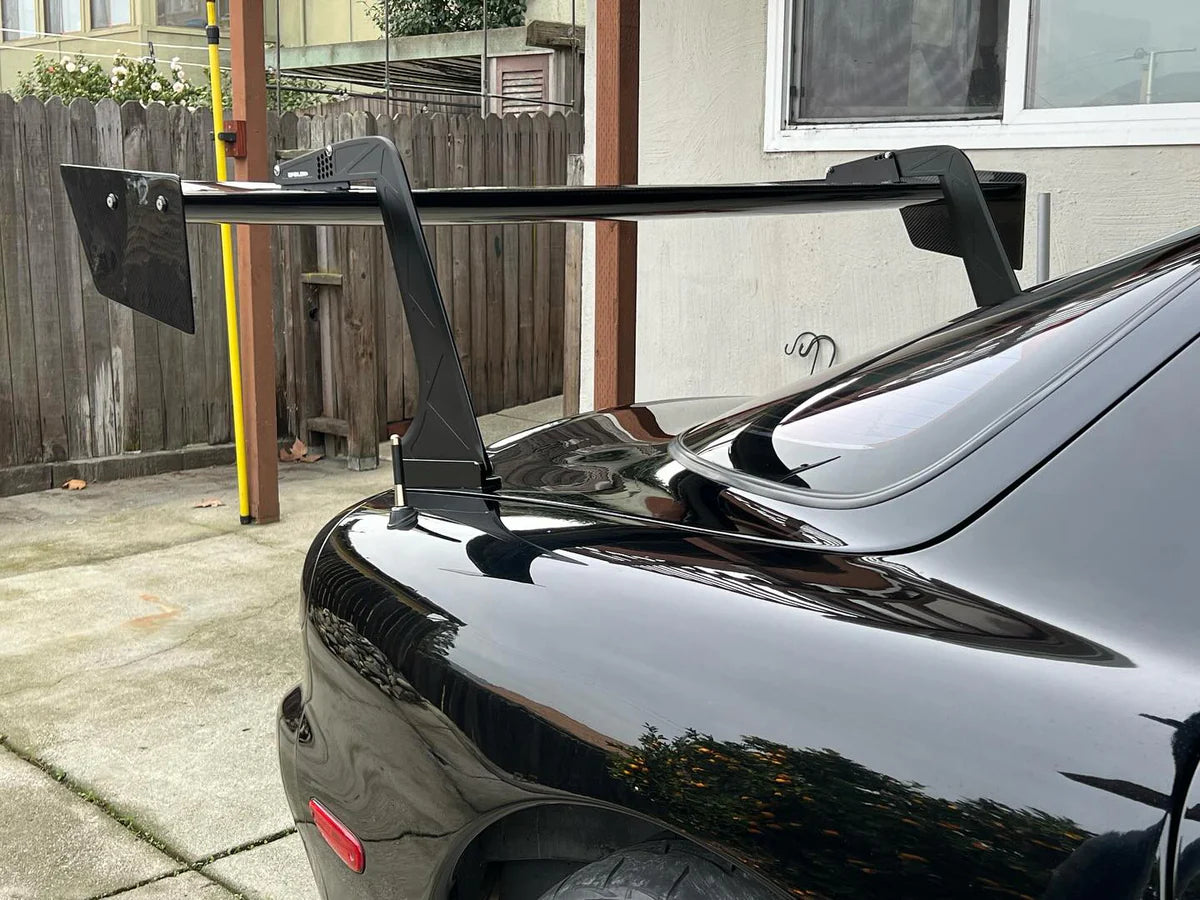

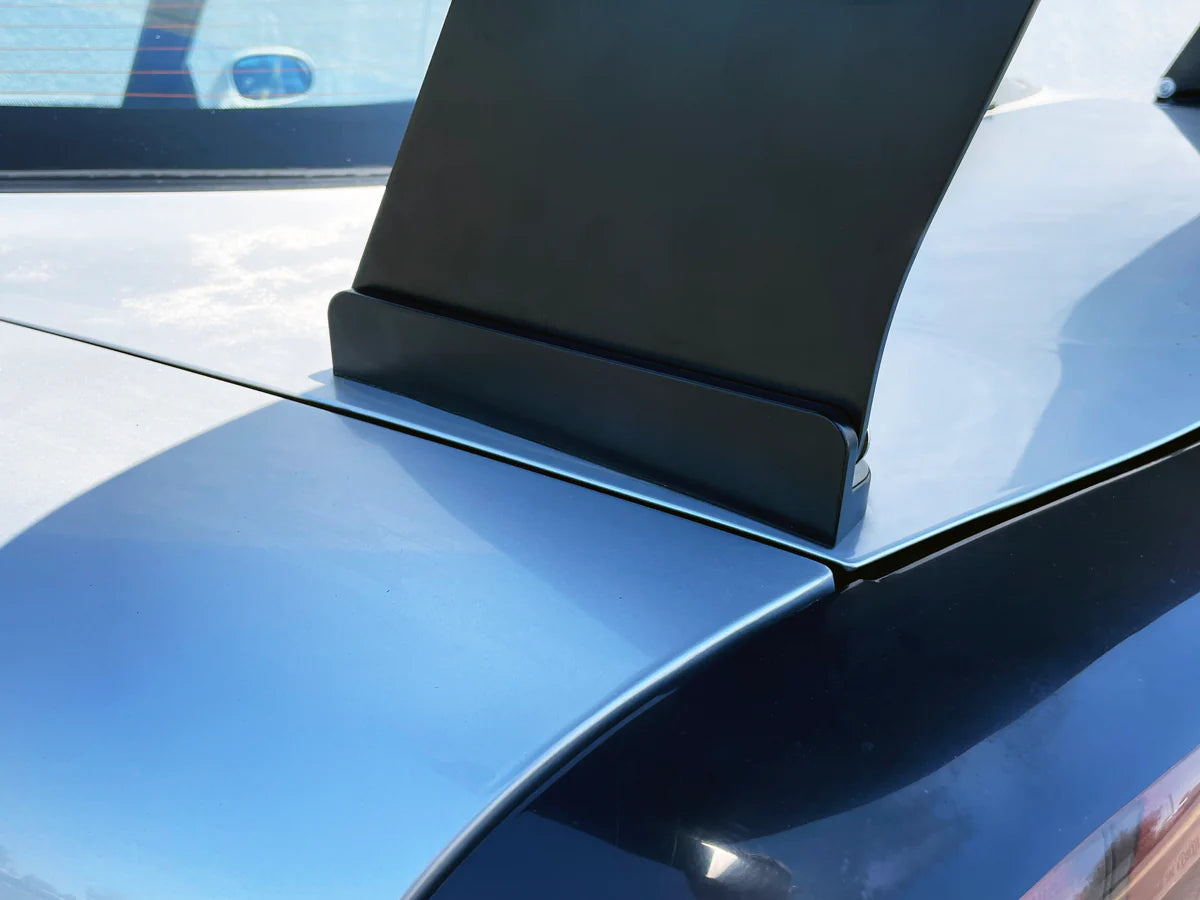

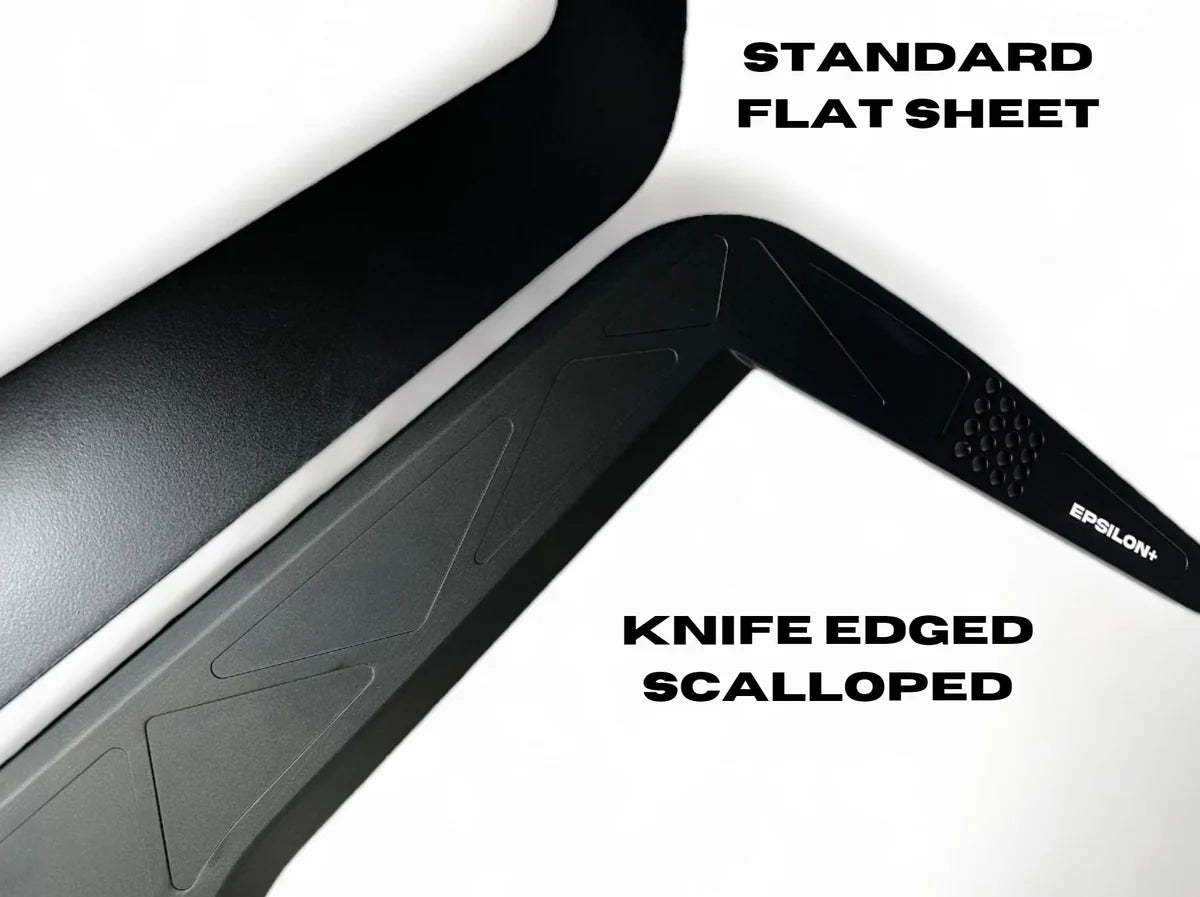

Finely adjustable: 5-Axis 7075-Al CNC bases for minimal exposed hardware. New for 2024 — bases and uprights are now anodized black. Swan uprights are machined, knife-edged, pocketed, and chamfered. Adjustment holes in 1-degree increments (16 degrees total). Please thread-lock all M8 bolts.
Special Notes:
- Carbon fiber motorsport wings come in a matte finish from manufacturing. Apply clear coat for extended outdoor use.

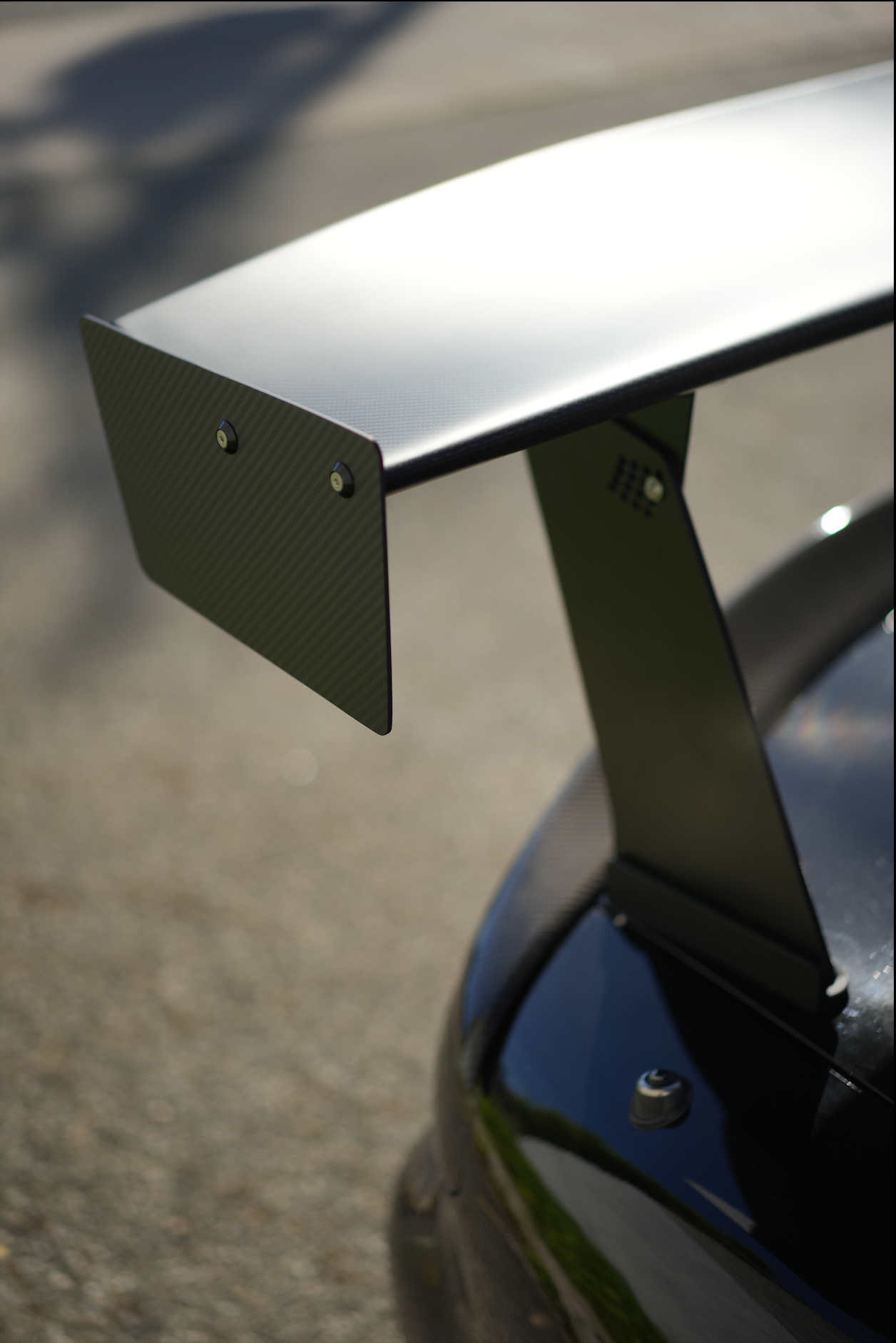

- Carbon endplates are included as standard.
- All parts are powder coated black for a durable, professional finish.
Wing Stand Height: Measure how far you want the top of the wing to rise, subtract 1.5 inches, and round to the nearest available option. We typically recommend aligning the top of the wing to the roof height of the car.
